Howen MDVR and dashcam GPS products with AI deliver intelligent video surveillance and real-time tracking for fleets. Equipped with AI features like driver fatigue detection, ADAS, and event analysis, they enhance safety, reduce accidents, and improve fleet efficiency.
Howen’s smart, reliable solutions redefine vehicle monitoring and modern fleet management.
Strictly for professional, industrial, or automotive fleet installation.
MDVR

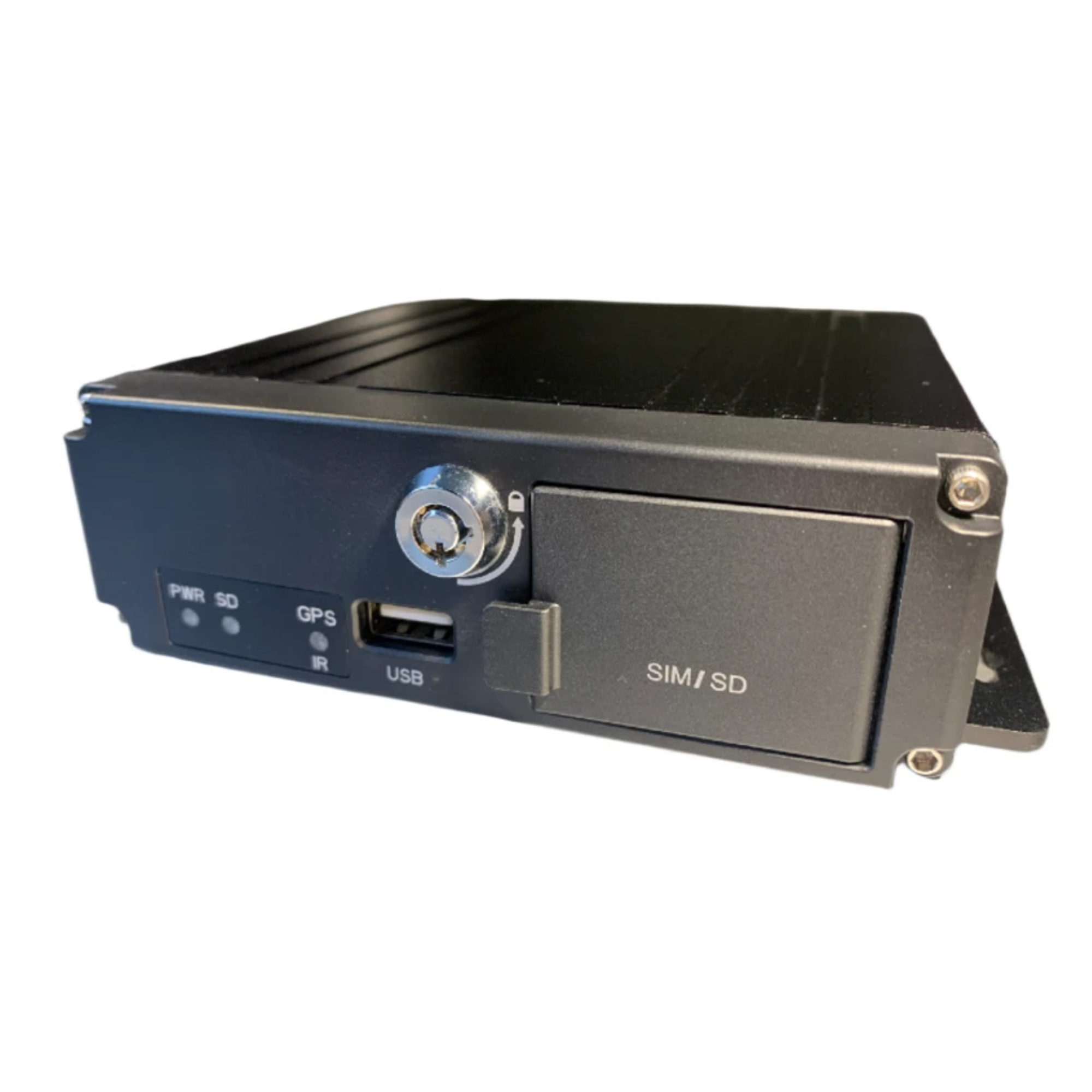

Entry level 4 Channel MDVR device. Supports the connection of 4 AHD cameras. You will need to purchase an SD Memory card with capacity to suit your requirements. Great value and reliable device.
● 4ch 1080P input
● GPS positioning
● 3-axis G-sensor
● Built-in 3G/4G
● 1 x RS232 , 1 x RS485
● Support Wi-Fi dongle
● CVBS video output
● 1 x SD card slot, max. 512GB
● 10-36V power supply
Box Contents
ME40-04 MDVR Unit
Remote Control
GPS Antenna
WiFi Antenna
GSM Antenna
Aviation Power Cable
Molex 12 Pin Wiring Harness
Key
Hero-ME32-06 is a 6-channel all-in-one AI SSD MDVR featuring a compact design, IP69K water resistance, accurate AI analytics, and rich interfaces. Specially designed for heavy-duty commercial vehicles in mining, oil & gas, and harsh environments.
● Up to 6ch or 8ch 1080p video input (4 x AHD + 2 or 4 x IPC)
● Support rich AI features: DMS, ADAS, BSD, PCS, HOD
● Built-in 4G, Wi-Fi, and multi-constellation GNSS (GPS/GLONASS/Galileo/Beidou/QZSS)
● Built-in 6-axis G-sensor (HA/HB/HC, impact & roll-over detection)
● H.265 / H.264 video compression
● Storage: 1 x 2.5" SSD slot (up to 4TB) + 2 x TF card slots (up to 1TB each)
● IP69K water and dustproof rating
● Wide range of interfaces: 8 x DI, 2 x DO, 3 x RS232, 1 x RS485, CANBUS, USB-C
● 9-36V DC power supply with wide working temperature (-40°C to +70°C)
Box Contents
ME32-06 MDVR Unit
Remote Controller
GNSS Antenna
Wi-Fi Antenna
4G Antenna
Aviation Power Cable
Wiring Harness / Input-Output Cables
Locking Key

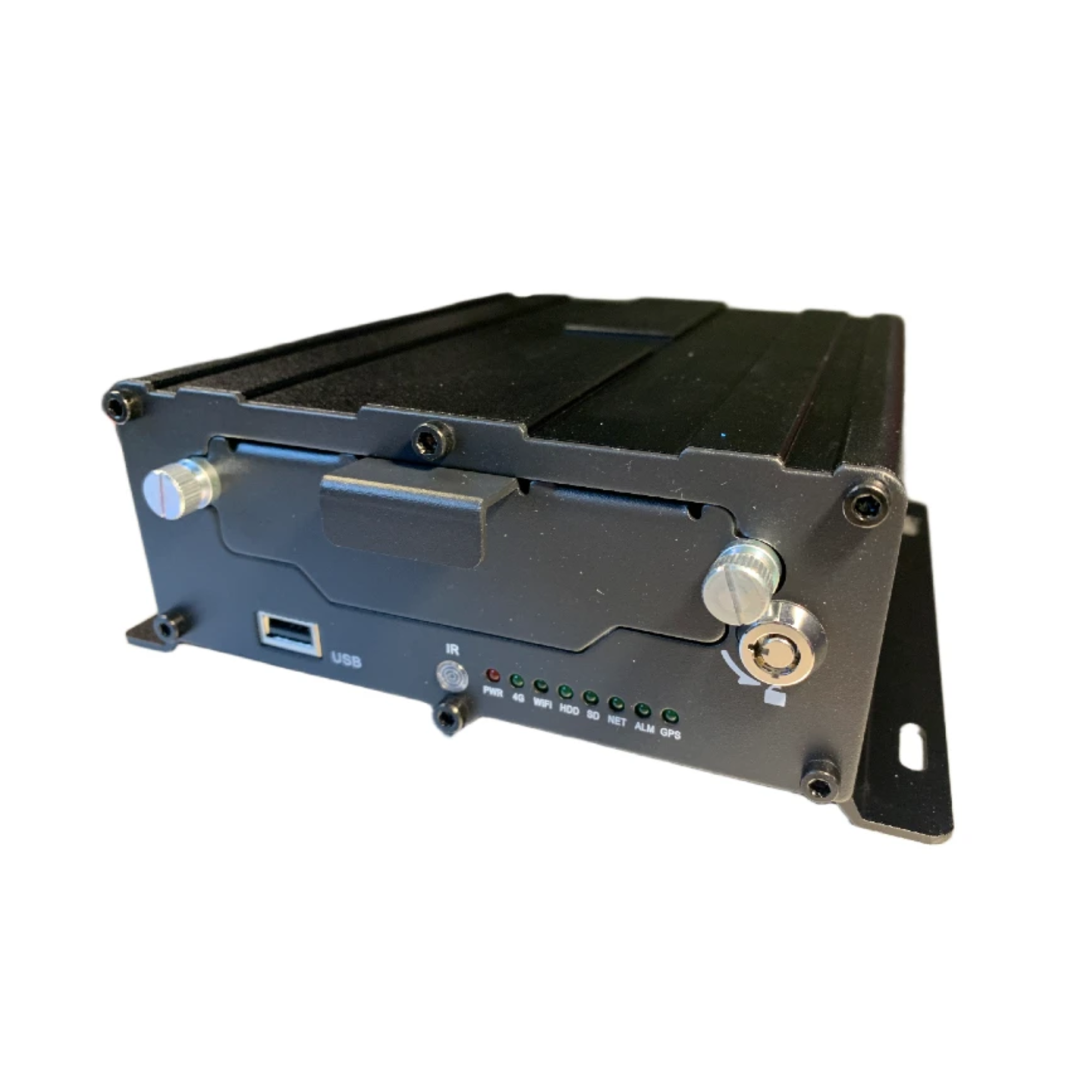

5 Channel MDVR device. Supports the connection of 4 AHD cameras and a single IP camera. You will need to purchase an SD Memory card with capacity to suit your requirements. Great value and reliable device.
4 ch AHD 1080p input + 1 ch IPC 1080P input
DMS/ADAS/FR for option
5 ch audio input
Built-in 4G/Wi-Fi/GPS
CVBS video output
1 x SD card slot, max. 512GB
1 x HDD/SSD slot, Max. 2TB
6 PIN aviation Ethernet port
8-36V wide range power
Box Contents
ME32-04 MDVR Unit
Remote Control
GPS Antenna
WiFi Antenna
GSM Antenna
Aviation Power Cable
30 Pin Wiring Harness
Key

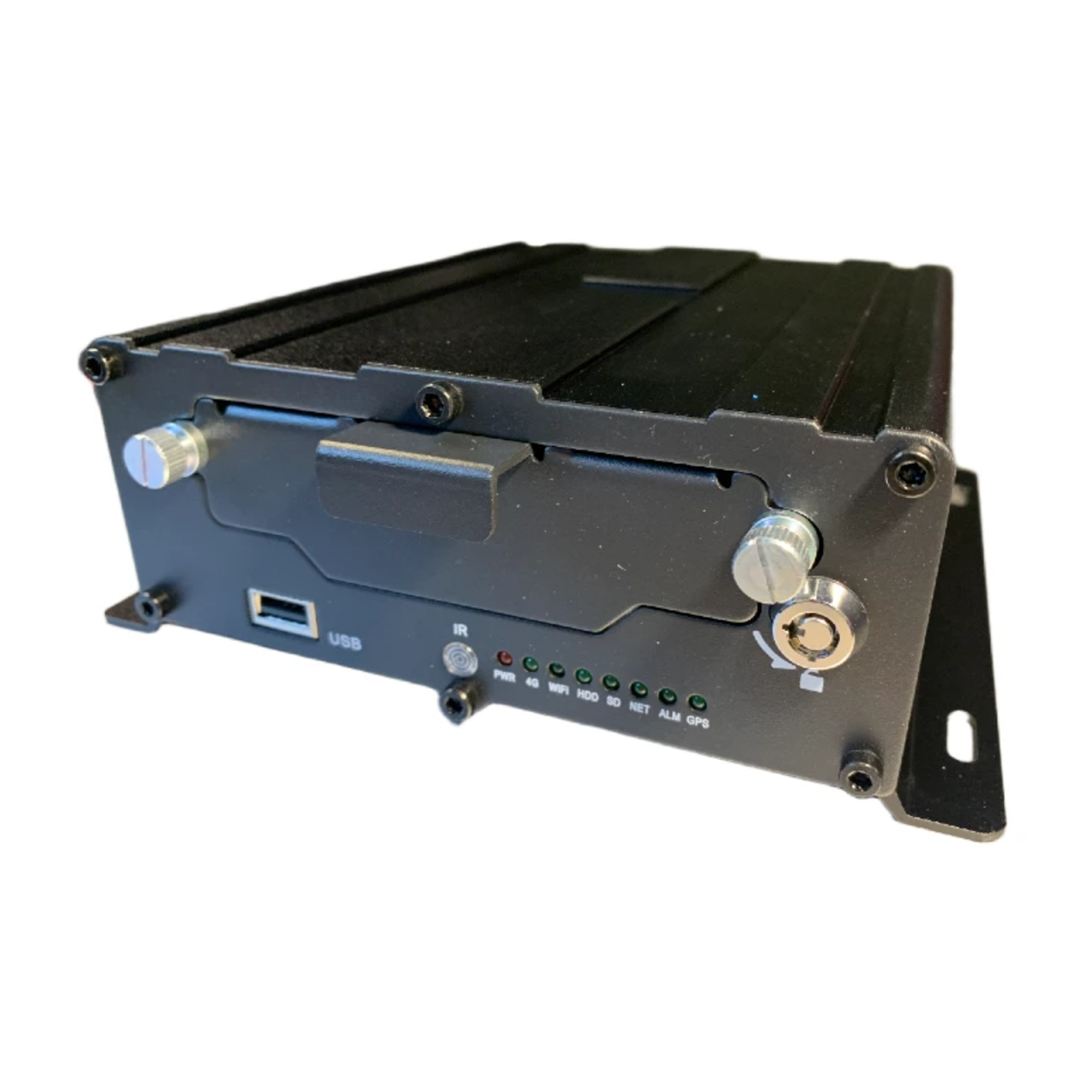

● 8ch 1080p video input
● AHD 1080p output
● H.265/H.264
● 6-axis G-sensor
● 3 x RS232, 1 x RS485
● Built-in 4G/ GPS/Wi-Fi
● 8-36V wide-range power
● Support 4ch IPC input ( up to 4ch 2MP IPC)
● 1 x SD card slot, max. 512GB
● 1 x HDD/SSD slot, max. 4TB
● DMS/ADAS/FR /BSD/PCC
● 6 PIN aviation Ethernet port
Box Contents
ME31-08 MDVR Unit
Remote Control
GPS Antenna
WiFi Antenna
GSM Antenna
4 AHD Input splitters
RS Interface Cable
Aviation Power Cable
30 Pin Wiring Harness
Key
Experience pristine clarity with its high-resolution video capture, ensuring every detail is captured with precision and accuracy. Enjoy crystal-clear footage that provides a reliable record of your fleet for enhanced safety.
Box contains
Dash camera
Power cable
Mounting bracket
Slim 4 pin to AHD Convertor cable
Dashcams
The Howen Hero-ME40-02 V8 is a compact, four-channel (2+2) all-in-one AI dashcam designed for commercial vehicles. It is easily installed and configured using the Howen iTool mobile app.
Key Technical Specifications.
Video Input: Supports up to 3ch 1080p and 1ch 720p input.
Recording: Uses H.265/H.264 video compression. Without AI, it records at max 3x1080p@20fps + 1x720p@25fps; with AI, it records at max 4x720p@25fps or 2x1080p@25fps.
Connectivity: Features built-in 4G LTE, GPS/Beidou (dual-mode) positioning, and Wi-Fi (AP/CPE mode). Bluetooth is optional.
Storage: Includes one TF card slot (up to 1TB) and 512MB of internal storage for backing up critical incident clips.
Power & Environment: Operates on 8-36V with a working temperature range of -20°C to 70°C. It supports a low-power sleep mode after ignition is turned off.
AI and Safety Features (requires licence - not included)
Advanced Detection: Optional AI features include Driver Monitoring Systems (DMS), Advanced Driving Assistance Systems (ADAS), and face recognition.
DMS/ADAS Alerts: Detects various behaviors such as yawning, distraction, phone use, smoking, seatbelt status, and fatigue (eye close), as well as road hazards like forward collisions and lane departures.
Safety Monitoring: Includes a 6-axis G-sensor for HA/HB/HC detection and a wired panic button for emergency reporting.
Communication and Interfaces
Two-way Audio: Equipped with a built-in microphone and speaker, supporting GSM/VoLTE cellular calls.
Interfaces: Includes 1 USB Type-C port, 2 digital inputs, 1 digital output, and 1 RS232 port.
Accessories: Supports external sensors such as fuel, temperature, humidity, and RFID readers.
The Hero-ME40-02 V8 Pro is a compact, 6-channel all-in-one AI dashcam designed for commercial vehicles. It supports 1080p video input with H.265/H.264 compression and offers flexible installation and configuration via a mobile app.
Key Features
AI and Safety Features (requires licence - not included)
AI Functionality: Includes optional support for Driver Monitoring Systems (DMS), Advanced Driving Assistance Systems (ADAS), Blind Spot Detection (BSD), Hands Off Detection (HOD), Co-driver Detection, and face recognition.
DMS/ADAS Alerts: Detects driver behaviors such as yawning, distraction, smoking, and phone use, alongside safety warnings like Forward Collision (FCW) and Lane Departure (LDW).
Communication: Features built-in 4G LTE, Wi-Fi, Bluetooth 5.2, GPS/GNSS, and a microphone/speaker for two-way communication and cellular calls.
Technical Specifications
Video: Supports a front-view camera, an in-cab view camera, and up to four external cameras.
Storage: Equipped with two TF card slots supporting up to 2TB total capacity.
Interfaces: Includes USB Type-C, digital inputs/outputs, RS232, CANBUS, and 1-wire support.
Environmental/Power: Operates on DC 9-36V at temperatures ranging from -40°C to 70°C.
Durability & Compliance: Features a 6-axis G-sensor for impact detection and supports power-loss protection to save crucial clips. It is certified for CE, FCC, PTCRB, Emark, and UKCA.
CANBUS DATA: Read CAN data (requires licence - not included)
The device can integrate with various accessories, including fuel sensors, RFID readers, and humidity/temperature sensors. It is compatible with Howen’s VSS and third-party FMS servers.
LCD Monitors

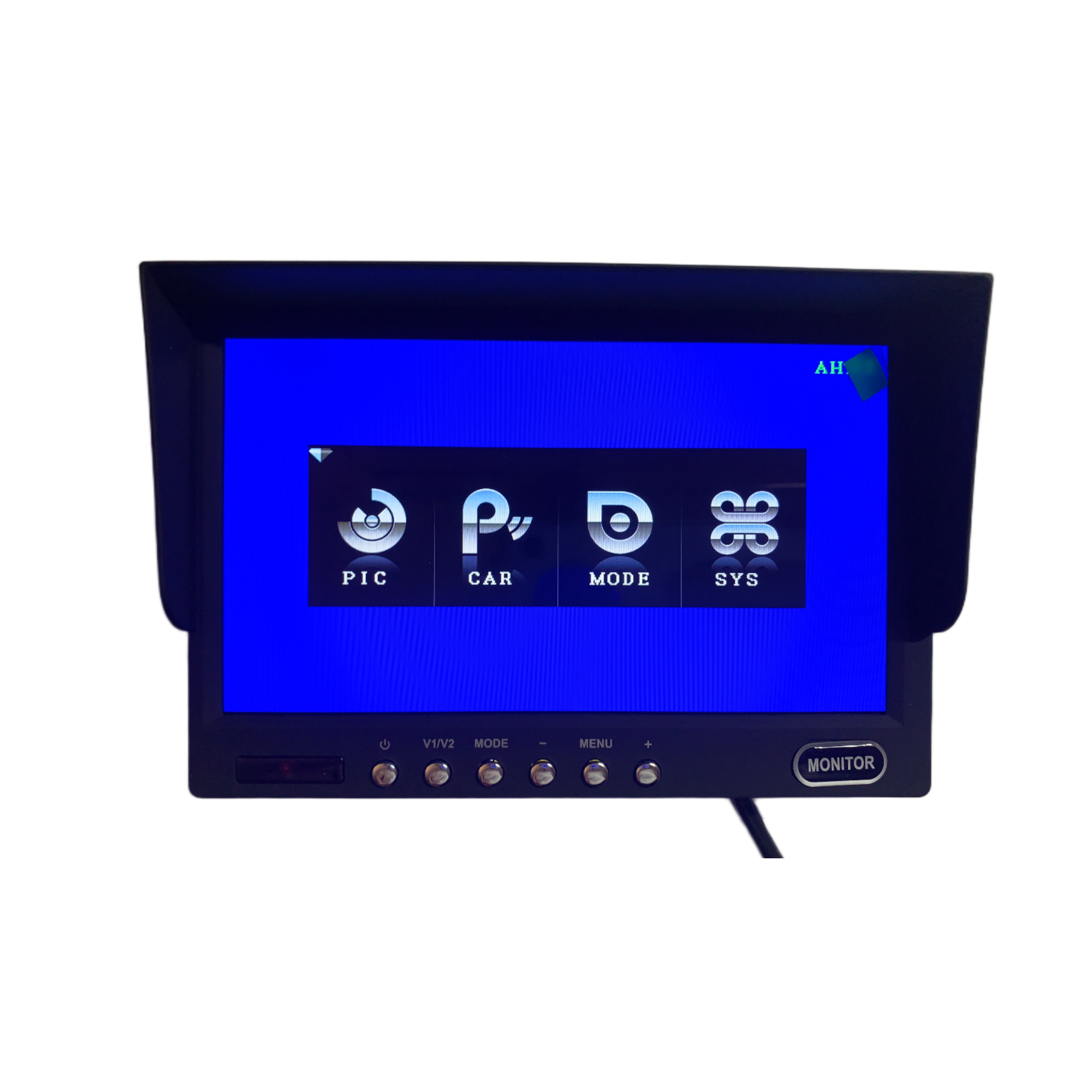

The Howen dual input LCD monitor has two inputs to allow for direct connection of two cameras. A trigger wire is used to automatically switch to the second camera.
Box Contents
2 channel LCD monitor
Mounting bracket
Power cable
AHD Link cable
Remote control
● 1080P AHD
● Mini size
● 200W CMOS Sensor
● 4PIN aviation cable
● Wide angel monitoring
● Suitable for Dashcam
● 3M sticker
● DC12V power supply
AHD Cameras (4 pin)
● CMOS Sensor
● Lens 6mm
● WDR
● Black & white image
● FoV: D=65° H=56° V=31°
● VCC12V power supply
● Airline length: 2m±0.4m
720P / 1080P AHD
● Pan/Tilt adjustment
● 0 Lux(IR LED On,at F1.2)
● Weatherproof to IP65
● 4PIN Aviation connector
● Highlight Compensation
● 5 Infrared LEDs
● 3.6mm lens(2.8mm for option)
● Viewing angle: 3.6mm: 90°, 2.8mm: 100°
● DC12V power supply
• Innovative Design
• 1/2.9″ CMOS Sensor
• 720P/1080P AHD
• 3.6mm Fixed Lens
• Viewing Angle: 3.6mm: 90°, 2.8mm: 110°, 2.1mm: 120°
• DC12V Power Supply
• 4-Pin Aviation Cable
• Supports Audio
• Supports Tilt/Pan Adjustment
• Mini Size: 71.6 × 64 × 40.3mm
● 720P/1080P AHD● Mini size
● 0.1 Low illumination
● 4PIN aviation cable
● 3M sticker
● 5 Infrared LEDs
● Audio & Built-in mic
● DC12V power supply

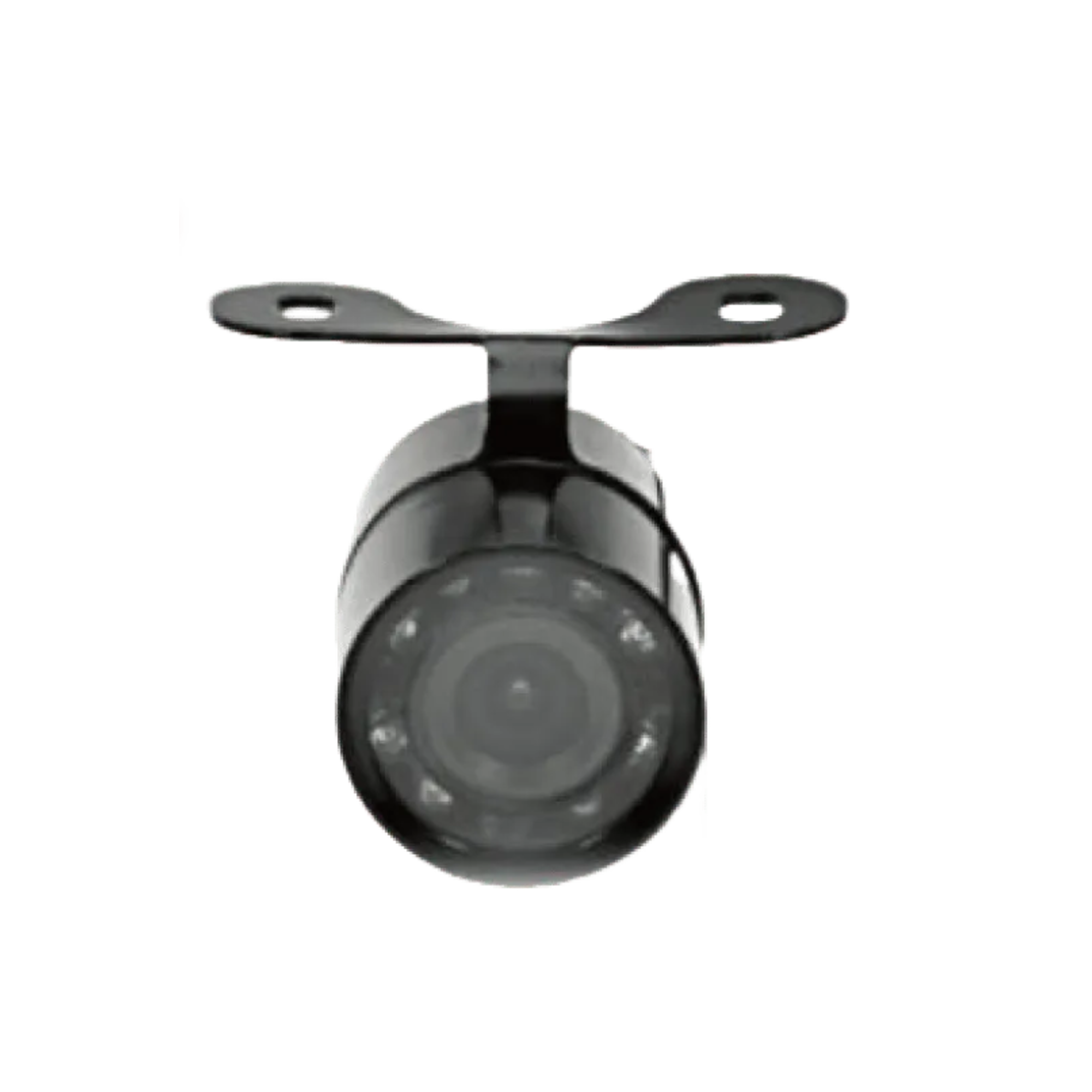

● 720P / 1080P AHD
● Metal-cased
● 12 Infrared LEDs
● Weatherproof to IP67
● DC12V power supply
● Highlight Compensation
● Lens 3.6mm(2.8 optional)
● Viewing angle:
3.6mm: 90°, 2.8mm: 100°
● Low power consumption
In the box:

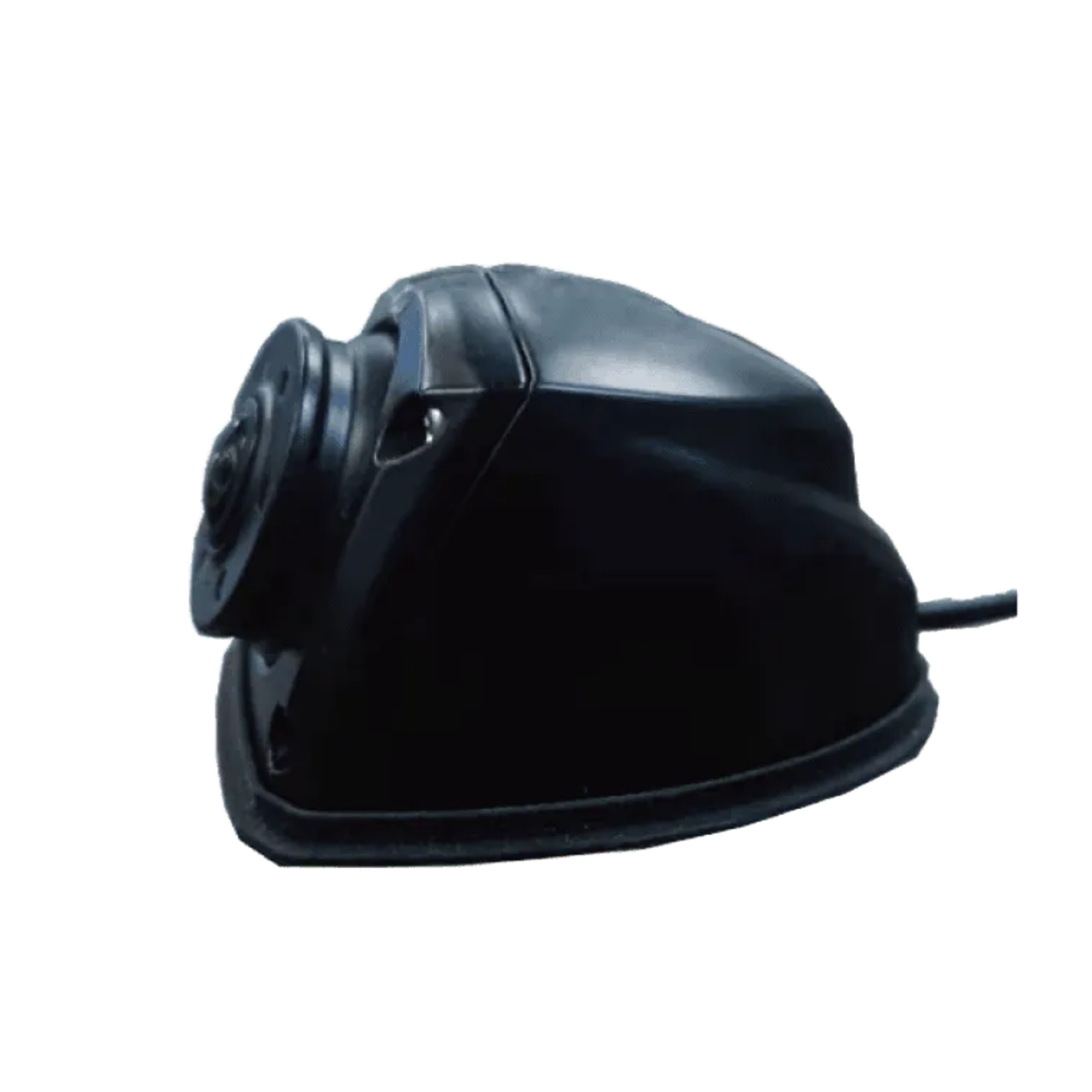

● Bracket for side mirror camera mount – no drilling required.
● Side View AHD Camera
● 720P AHD
● 3.6mm fixed Lens
● 12 Infrared LEDs
● Metal case
● Weatherproof to IP67
● CMOS image sensor
● View angle: 90°
● Low power consumption
● Pan/Tilt adjustment
● DC12V power supply
● 720P/1080P AHD
● Low power consumption
● 0.1 Low illumination
● 4PIN aviation cable
● Built-in mic
● Tilt Adjusting Available
● Lens 3.6mm (2.1 optional)
● DC12V power supply
Starlight Rear View
● 1/2.9″ CMOS Sensor
● 720P/960/1080P AHD
● 0.1 Low illumination
● Metal case
● IP67/IP68
● 4PIN aviation cable
● Lens 3.6mm (2.8/2.1 optional)
● Viewing angle: 3.6mm: 90°,2.8mm: 100°, 2.1mm:120°
● Pan/Tilt adjustment
● Highlight Compensation
● DC12V power supply
IP Cameras (6 pin)
Hero-C62S0V30-2MR – 2MP IR Dome IP Camera
V30 IR dome IP camera with metal case
IP65 waterproof protection
Mainly deployed in outdoor applications
1/2.7” CMOS sensor
1MP (720P) / 2MP (1080P) settable resolution
Optimized H.264/H.265 compression
ONVIF protocol support
3.6mm fixed iris lens
2.8mm lens available as an option
Viewing angle: 3.6mm – 90°, 2.8mm – 100°
6 infrared LEDs
940nm infrared spectrum
Infrared LED range: up to 5m
Adjustable pan and tilt
6PIN aviation female interface
HOWEN Rear View
● 1/2.9″ CMOS Sensor
● 1080P AHD
● Infrared (IR)
● Lens 3.6mm
● 6PIN aviation connector
● High shielding support for body and cable
● Metal case
● Pan/Tilt adjustment
● 2MP (1080P)
● 0 Lux (IR LED On, at F1.2)
● Pan/Tilt Adjustment
● 1×6PIN Aviation Interface
● 12 Infrared LEDs
● 3.6mm Lens (2.8mm Optional)
● Viewing Angle: 3.6mm: 90°, 2.8mm: 100°
● DC12V Power Supply (Support PON)
Howen Accessories
Howen HERO-V42-EC01
Connectors: 4-Pin BMW Male to 4-Pin Aviation Female
Cable Length: 60 cm per cable
Signal Type: AHD Video, Audio, and 12V Power
OBD power cable connector for easy plug & play installation. Simply plug the OBD connector into the OBD port on your vehicle and plug the other end into your Howen Mini Dashcam.
PoN switch: support 3 ch PoN IP cameras (for use with V8 Pro Dashcam
Extension Cables (4 pin AHD type)
HW-DJC-5N (5m) Extension Cable
5 meter IP camera extension cable, 6pin aviation (male to female)
Extension Cables (6 pin IP type)
15 meter IP camera extension cable, 6pin aviation (male to female)
