Jimi IoT dashcams combine high-definition video recording with real-time GPS tracking for superior fleet and driver safety. These smart devices offer live monitoring, accident alerts, and route history, enhancing accountability and efficiency. Ideal for commercial use, Jimi IoT ensures peace of mind through advanced, reliable, and connected technology.
Dashcams
The JC182 is a forward-facing camera combining video recording with precise location tracking. Equipped with built-in 4G and GNSS modules, it delivers live position updates and continuously captures your journeys.
4G LTE Connectivity
2K Quad HD Camera
Time Lapse Recording
OBD Plug in or 2 wire connection
Super Capacitor (Backup Power)
TF card (up to 512GB)
6-Axis accelerometer
2560×1440 / 25FPS / F2.4 / Full color / 110° (HFoV)
Input voltage DC 9–30V
Dimensions 70mm x 60mm x 34mm
NOT COMPATIBLE WITH NAVIXY or GEO DS
In the Box
1 x JC182
1 X OBD Cable
1 x Bracket
JC371 4G Multi-channel AI Dashcam serves as a robust monitoring solution for commercial fleets, supporting three-channel video and intelligent safety features like ADAS and DMS. Its “all-in-one” antenna configuration minimizes cable clutter, helping managers improve fleet transparency and simplify hardware deployment.
4G LTE Cat 4, 3G (WCDMA), 2G (GSM)
Positioning system : GPS, BDS, AGPS
Camera mount : 1080P x 3
Input voltage: DC 9–30V
Dimensions : 114.0 x 113.0 x 33.0mm
Weight : 294g
Nano-SIM
Internal Memory : 128GB EMMC
WiFi: 2.4GHz, with support for AP Mode/STD Mode/WiFi Direct
Feature
ADAS FCW, HMW, LDW, PCW
DMS (Optional) Phone use, Smoking, Distraction, Yawning, Eyes closed, No face detected
Configuration support GPRS, SMS, Memory card, APP
Firmware update USB cable, memory card, OTA
Certification CE, FCC
NOT COMPATIBLE WITH NAVIXY or GEO DS
In the Box
1 x JC371
1 X Power Cable
1 x Bracket

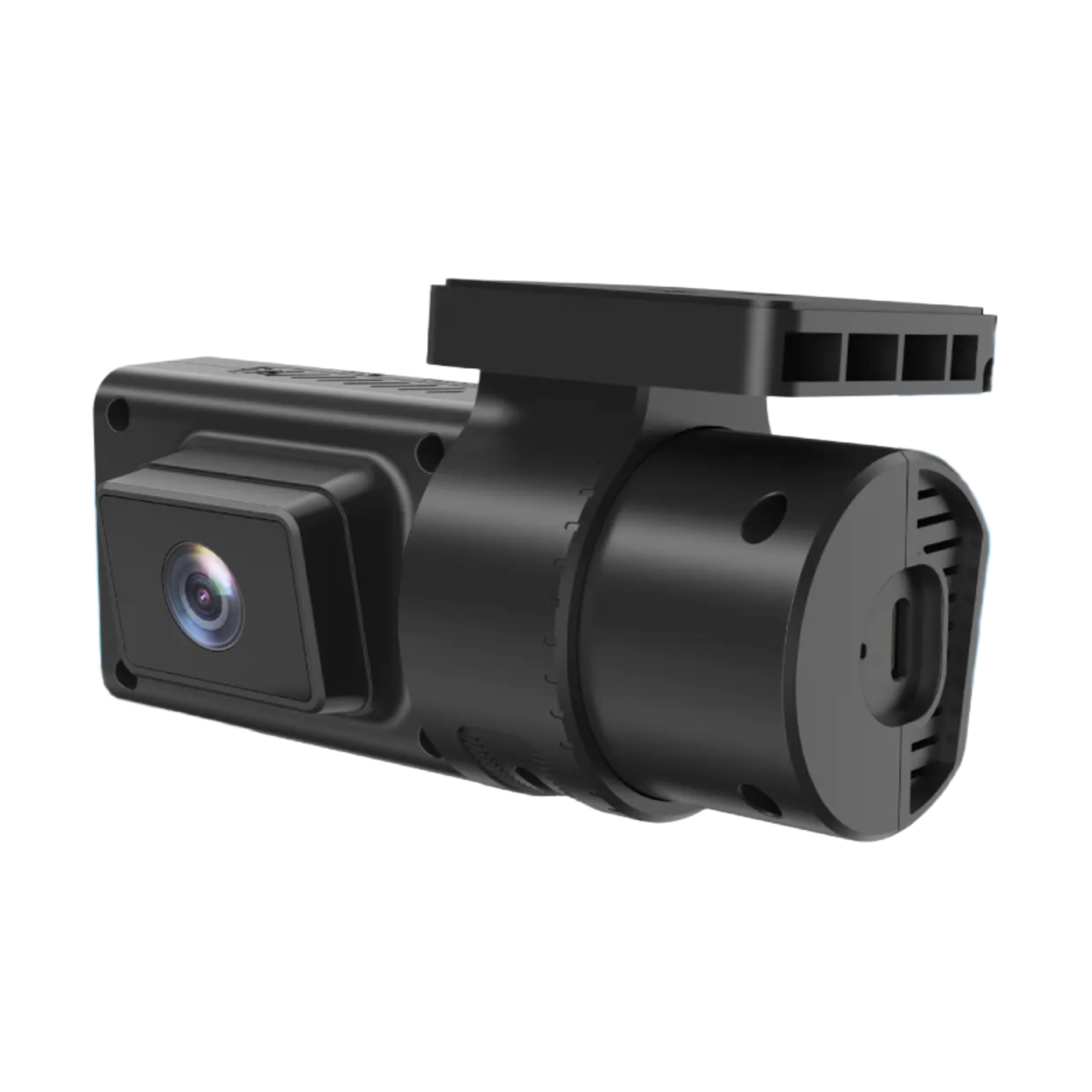

The JC181 Dual Dashcam provides two channels of video capture. Stream live footage, replay historical video, track vehicles in real time, and review past routes—ensuring safety, transparency, and efficiency across your operations.
4G LTE Cat 1
Front Camera (Main). 1920×1080/30FPS/F2.2/Full color/110° (HFoV)
Sub Camera. 640×360/10FPS/F2.8/Full color in daytime & monochrome in dim light/100° (HFoV)
Video Format. .mp4
SD card (Max 128GB)
Operating Voltage DC 9–30V
Dimension 118mm x 46.5mm x 43.5mm
Power cable: B+/ACC/GND
Box contents:
JC181 Dashcam
Mounting plate
Power cable
Requires SD card (Max 128GB) (not supplied)
NOT COMPATIBLE WITH NAVIXY OR GEO DS PLATFORMS
Independent Split-System Architecture. The main control unit is separated from the camera modules, allowing for a more discreet installation while reducing direct exposure. Integrated internal antennas also help minimise complex cable management.
Flexible Expansion Options
Equipped with multiple communication interfaces including RS232 and TTL ports, enabling compatibility with additional accessories such as fuel level sensors, temperature monitoring devices, and other external modules.
AI-Powered Safety Functions
Advanced intelligent algorithms, including ADAS and DMS technologies, help enhance driver awareness, support safer driving behaviour, and improve fleet compliance and road safety standards.
Multi-Camera Monitoring
Supports multiple camera connections for wider vehicle coverage, allowing different viewing angles to be recorded simultaneously for improved visibility inside and outside the vehicle.
In the Box
1 x JC451
1 x GPS Antenna
1 x WiFi Antenna
1 x GSM Antenna
1 x Aviation Power Cable
The JC261 Dashcam provides video capture of the road ahead and also allows the connection of an external camera.
4G LTE Cat.4
Advanced Driver Assistance System (ADAS)
Driver Monitoring System (DMS) (optional)
Camera 1920×1080/25FPS/F2.2/Full color/85° (HFoV)
Memory Support TF card (Up to 256GB)
Power cable: B+/ACC/GND
Voltage DC 9–30V
Dimension 109mm x 69mm x 52mm
We supply these devices unlocked for use on your own platform and we also have options where the device is pre-configured with SIM card already installed if using one of our GPS tracking platforms.
Box contents:
JC261 Dashcam

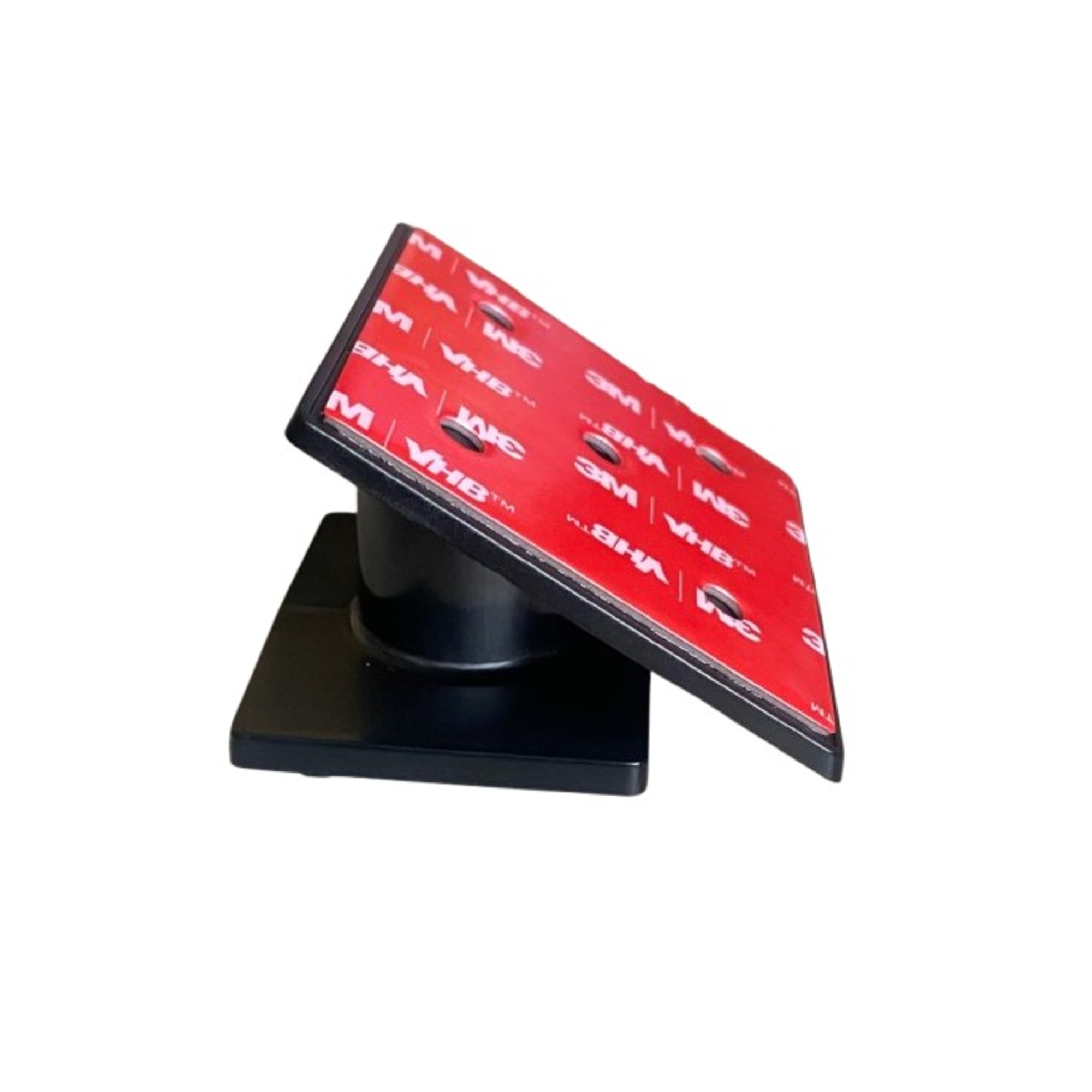

Mounting plate (Standard or HGV)
Power cable
Panic switch
Requires SD card (Max 256GB) (not supplied)

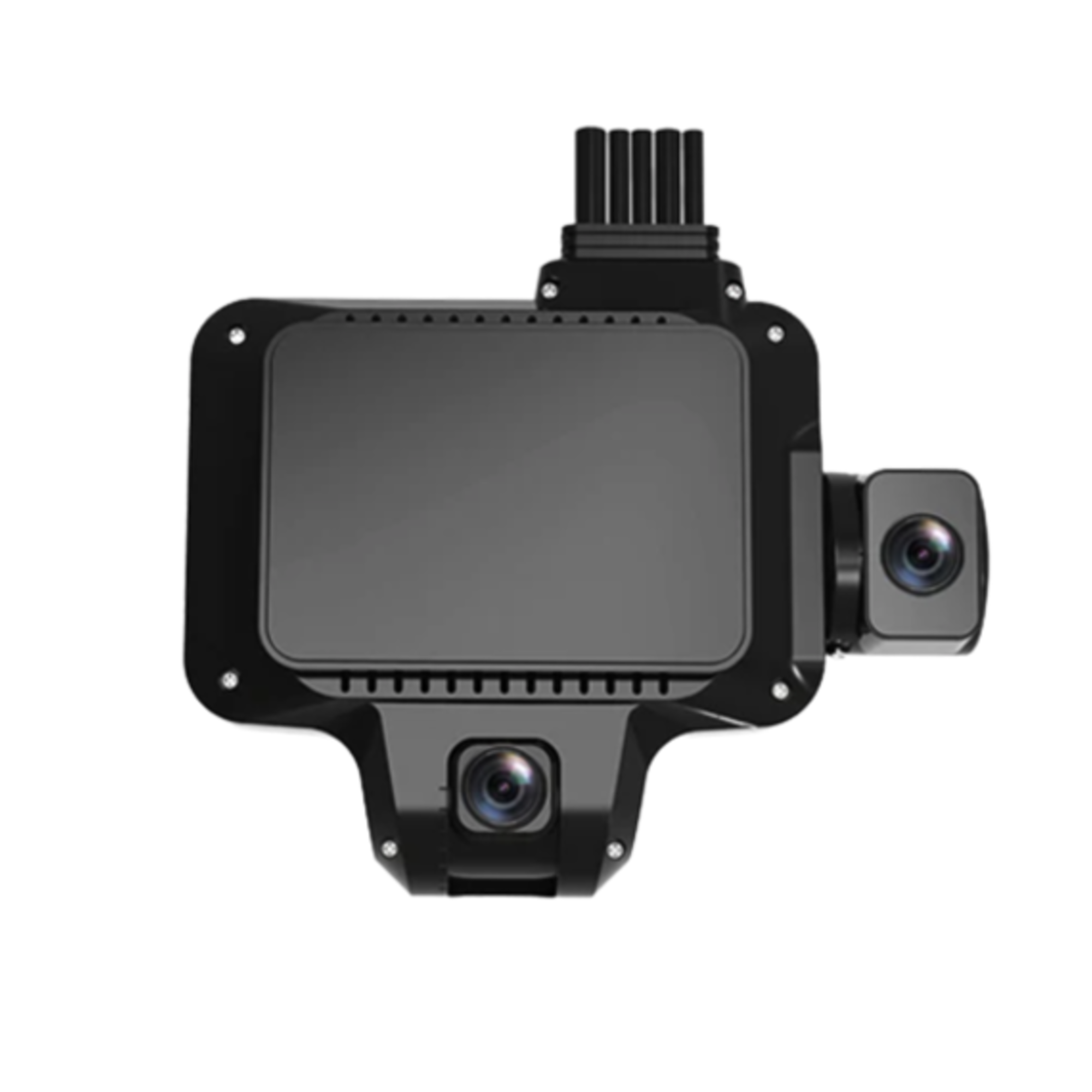

The JC450 Series is an LTE dashcam system designed specifically for use in commercial vehicles. This feature-rich camera system is capable of recording 4/5 separate channels simultaneously, and provides valuable ADAS and DMS algorithms that actively assist drivers increase awareness and safety on the road by providing real-time, actionable alerts.
4G LTE Cat 4, 3G (WCDMA), 2G (GSM)
Front camera (main) 1920×1080/25FPS/F2.0/Full color/80° (HFoV)
Input voltage DC 9–30V
Memory TF card (up to 256GB*2)
Digital I/Os 2*SOS; 1*Relay; 2*Reserved inputs
Analog I/Os 1*CVBS-OUT
Serial ports 1*RS232, 1*TTL
Sensor 3-Axis accelerometer
ADAS FCW, HMW, LDW

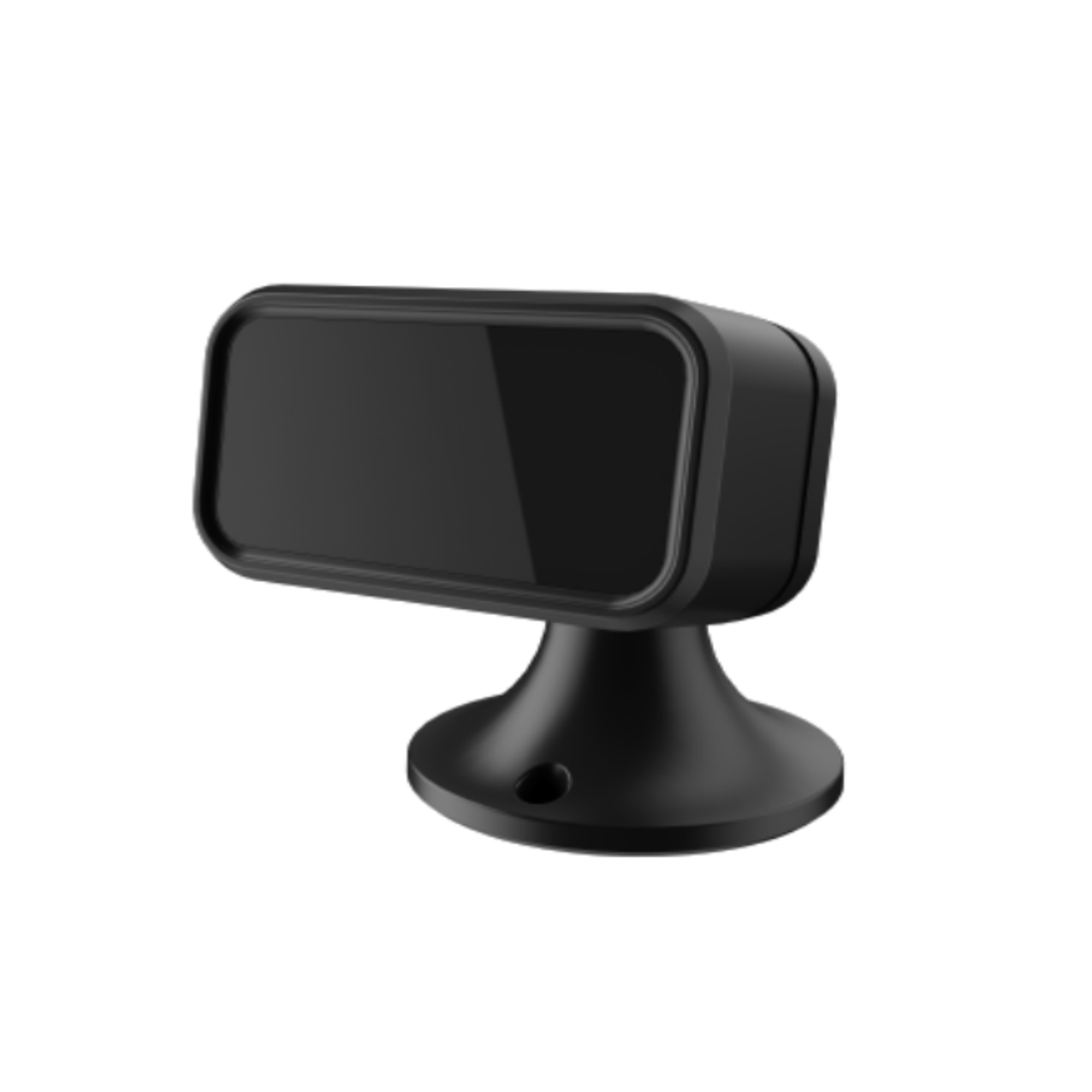

DMS (Optional)
Phone use, Smoking, Distraction, Yawning, Eyes closed, No face detected
Facial Recognition System (Required with JC171)
Seatbelt Detection (Required with JC171)
Box contents:
JC450 Dashcam
Mounting plate
Power cable
Panic switch
Requires SD card (Max 256GB) (not supplied)
The JC261P Dual Dashcam provides video capture of the road ahead and inside the vehicle.
4G LTE Cat.4
Advanced Driver Assistance System (ADAS)
Front Camera 1920×1080/25FPS/F2.2/Full color/85° (HFoV)
Inward Camera 1280×720/15FPS/F2.5/Full color in daytime & monochrome in dim light/90° (HFoV)
Memory Support TF card (Up to 256GB)
Power cable: B+/ACC/GND
Voltage DC 9–30V
Dimension 109mm x 69mm x 52mm
We supply these devices unlocked for use on your own platform and we also have options where the device is pre-configured with SIM card already installed if using one of our GPS tracking platforms.
Box contents:
JC261P Dual Dashcam
Mounting plate (Standard or HGV)
Power cable
Panic switch
Requires SD card (not included)
Cameras
The JIMI PB705 Mini Asset Tag is a compact and waterproof IP68 Bluetooth Tag Tracker designed for vehicles, bicycles, motorcycles, and portable asset tracking. The device uses the global iOS network to relay the tag location data to the Tracksolid Pro server where you can view the tag location along with trip history. Geo fence zones can be created with alerts and push notification support. THE TAG DOES NOT REQUIRE A SIM CARD.
Powered by a CR14250 800mAh disposable battery, it offers long battery life for reliable positioning and monitoring.
With its durable design, magnetic mount, and 360° tracking support, the PB705 is ideal for secure and efficient asset monitoring in various environments.
The JIMI PB705 Mini Asset Tag is supported on the Tracksolid Pro platform. Service subscription £1.80 per month This provides a budget tracking service if you just want to know where the tag is and where it’s been.
The Concox AT1 is a 6000mAh rechargeable device rated IP67
Easily transfer between vehicles. Features Bluetooth, Internal battery, harsh driving monitor etc.
Box contents:
AT1 device
Magnetic mount plate
USB charging cable
GPS Trackers & Tags
The JIMI VL110C -LTE Cat 1 & GSM – 4G LTE GNSS vehicle tracking device, suitable for monitoring and managing all types of vehicles. Input voltage range of 9 - 90 volts. Supports Ignition sense and immobilise output.
We supply these devices unlocked for use on your own platform and we also have options where the device is pre-configured with SIM card already installed if using one of our GPS tracking platforms.
Box contents:
VL110C GPS tracker
Power cable
The VL512 is an ultra-compact 4G tracking device that’s simple to install and operate, making it ideal for both personal vehicles and commercial fleets. The device plugs into the standard OBD port on the vehicle
Its reliable 4G connection enables fast, real-time data transmission, while its multi-source positioning system (GPS, BDS) ensures highly accurate and consistent location tracking.
We supply these devices unlocked for use on your own platform and we also have options where the device is pre-configured with SIM card already installed if using one of our GPS tracking platforms.
Box contents:
VL512 device
LL301 4G Cat 1 Asset GPS Tracker delivers ultra-long standby performance with its 10,000mAh high-capacity battery and durable housing. The LL301 provides instant alerts for abnormal events such as device removal, vibration, or unauthorized tampering, enhancing asset security.
We supply these devices unlocked for use on your own platform and we also have options where the device is pre-configured with SIM card already installed if using one of our GPS tracking platforms.
A waterproof casing is available as a spare accessory with a IP68 rating.
Accessories
THIS PRODUCT IS ONLY COMPATIBLE WITH THE JIMI JC261 & JC261P DASHCAMS.
The JC261 1500mAh 2A Battery Backup unit provides a reliable power source for Dashcams once the Ignition has been switched off.
Device charges when Ignition is switched ON. Approximately 4 hours to charge from 0% to 100%
Red LED light indicates charging in progress. Once fully charged, the Red LED will be extinguished.
The device is supplied with Jimi IoT screw thread power connections as standard for use on some of the latest Jimi dashcams but these can be cut off to reveal the 4 core wiring loom if you wish to connect manually to any other device.
Compatible with JC261
Specifications
Input Voltage Range: 9 – 33 volts
Output Voltage Range: 6 – 33 volts
Max Output Current: 2A
Battery Rated Capacity: 1500mAh@7.4volt
Waterproof – Magnetic Case IP68-Rated – Suitable for the JIMI IoT LL301 and other asset trackers.
